Hydraulic Lift

North Eye Elevator is Pioneers in the field of Hydraulic Elevators, These Stote-of-the-Art Elevators have excellent riding, quality, precision floor levelling, extremely silent operation and unsurpassed reliability besides being compact, safe and energy efficient, as they do not need a heavy machine room at the top of the building. A major advantage of these Elevators is that in the event of power failure, Elevator Car automatically comes to a safe landing level.

North Eye Hydraulic Elevators offers installation at site where there is no provision of a shaft for an Elevator and can be erected very fast. North Eye Hydraulic Elevators ore cost— effective due to loss consumption of powercompared to Traction & MRL Elevators. Also these are customised for specific needs of the customer.



Why Choose North Eye Hydraulic Elevators?

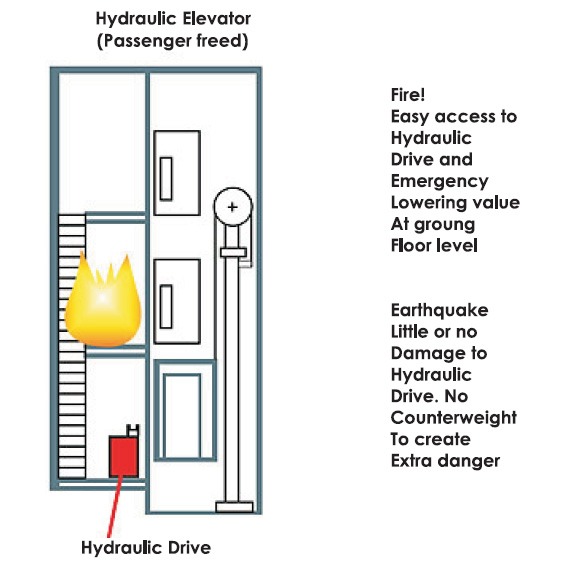

Its Hydraulic System provides additional safety in the event of power failure. A system that‘s 100% safe. North Eye Careful design allows installation in any kind of new or existing building. It guarantees the best aesthetic solutions and enhances and decorates houses, shops and offices. North Eye Hydraulic Elevator has been designed specifically to satisfy all the requirements of residential, public and commercial buildings up to 6 stops with minimal impact on existing and new buildings, and with minimal use of space.

Standard Dimensions for Hydraulic Elevators

Hydraulic Elevator Table
No of Passenger Load (K.g.) Car Width Car Depth Shaft Width Shaft Depth Opening M/c Room Width M/c Room Depth M/c Room Height Pit Depth Overhead
427211007001600130070031003800275015004250
534011508501600145070031003950275015004250
6408110010001600160070031004100275015004250
8544130011001800180080033004300275015004250
10680135013001900200080034004500275015004250
13884200011002500180090040004300275015004250
1610882000130025002000100040004500275015004250
2013602000155025002300100040004800275015004250
  • Note : Pit & overhead dimension subject change depending on travel height and speed.
    (All dimensions are in mm)
