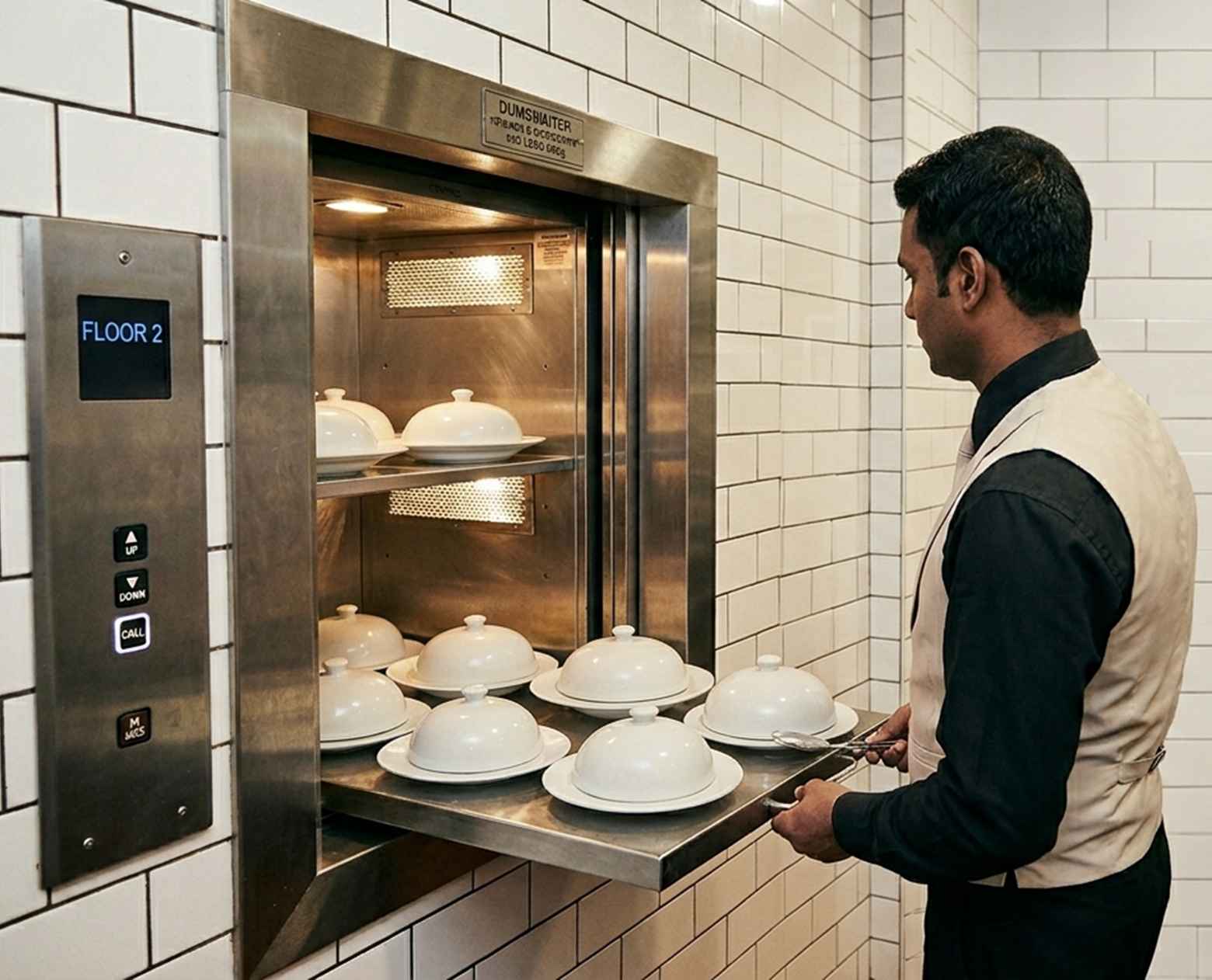

Dumb Waiter Elevator
The North Eye Elevator range of dumbwaiter elevators from North Eye in specially designed for the hospitality sector sector where it is used to transport food, crockery, cutlery etc. From mainly the kitchen to different floors in a hotel. It is designed to meet the requiste levels of hygiene and aesthetics required for the hospitality industry. These elevators are characterized by seamless and smooth movement which in apt for crockery and other fragile material. The various capacities offered can be customized according to the architectural setup.
Standard Features
- Load capacity between 50 to 250 Igs in increments of 50 Kgs
- Standard speed of 0.25 m/s
- Drive unit:
Traction drive, high quality reduction worm gear, coupled with motor and magnetic disc brake and hand wheel - Cabin:
SS/MS, centered suspension, guided on both sides, fitted with removable shelf and without door - Landing door:
SS/ MS Centre biparting vertical opening
- Control:
- 12V in all push buttons
- Call dispatch on each landing
- Position indicator on each landing
- Over current protection
- Call and sand function
- Half curtain infra red doorsatetyinn auto door
Standard Dimensions for Dumb Waiter Elevators
| Load (Kg) | Car Size | Shaft Size | Entrance | M/c Room | Overhead | Pit Depth | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Width | Depth | Height | Width | Depth | Width | Depth | Height | Width | Height | Depth |
| 100 | 700 | 700 | 800 | 1200 | 900 | 700 | 1200 | 1150 | 1200 | 4400 | 750 |
| 150 | 800 | 800 | 900 | 1300 | 1000 | 800 | 1300 | 1150 | 1200 | 4400 | 750 |
| 200 | 900 | 900 | 1000 | 1400 | 1100 | 900 | 1400 | 1150 | 1200 | 4400 | 750 |
| 250 | 1000 | 1000 | 1200 | 1200 | 1200 | 1000 | 1550 | 1250 | 1200 | 4400 | 750 |
- Note : For service / dumbwaiter It normally car door not provided Landing door is vertical bi—parting.
(All dimensions are in mm)
