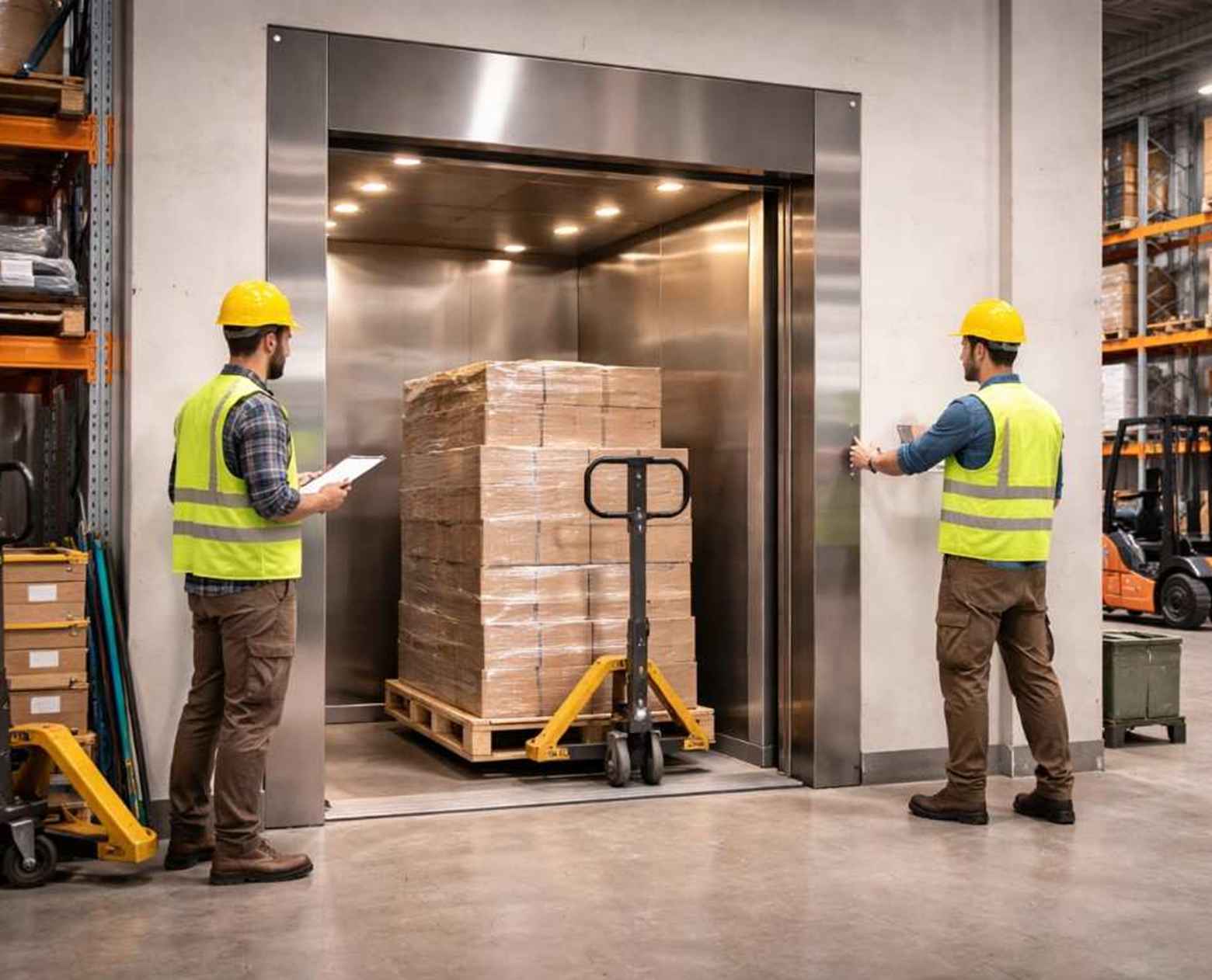

Freight /Goods Elevators

North Eye Elevator freight elevator range is another example of efficient, engineering to meet the rough and tumble of moving heavy goods in industrial setups. State-of-the-art— components and technology render enhanced load handling capacity. This offering is customizable and can suit different, usage needs and freight types of different industries. North Eye elevators can withstand the daily rigours of vertical transportation of heavy loads with consummate ease.

Standard Features

  • Down collective control
  • VVVF Drive
  • Emergency light
  • Self diagnosis of breakdown
  • Automatic leveling with ground floor on power restoration
  • Floor position and direction indicator in car and landings
  • Terminal approach slowdown for safety
  • Home landing
  • Final limit protection
  • Lift out order display
  • Attend operation for non stop destination landing
  • Direction change function in attend mode
  • Emergency alarm
  • Door open announcement system
  • Intercom facility

Optional Features

  • Voice announcement in multiple language options
  • Closed loop system to monitor motor performance
  • LCD display with message inside cabin and/ or at landings
  • Traffic regulation [for eievator group] Reduced waiting time at landings
  • Detection of stuck hall button to skip landing
  • Car call cancellation system
  • Intercom facility
  • Independent operation
  • Automated monitoring system with potential free contact
  • Time & temperature display
  • Automatic rescue DEVICE
  • Full collective system
  • Overload protection with display and buzzer
  • In between landing call bypass on full load
  • Car arrival gang and arrow

Standard Dimensions for Goods Elevators

Load (Kg) Car Size Shaft Size Opening M/c Room Pit Overhead
Capacity Width Depth Width Depth Width Depth Height Depth Depth Height
500 1100 1200 1900 1500 1100 3400 4000 2750 1500 4500
800 1200 1700 2000 2100 1100 3500 4800 2750 1500 4500
1000 1400 1800 2300 2100 1400 3800 4600 2750 1500 4500
1500 1700 2000 2600 2300 1700 4100 4800 2750 1500 4500
2000 1700 2500 2600 2800 1700 4100 5300 2750 1500 4500
2500 2000 2500 2900 2800 2000 4400 5300 2750 1500 4500
3000 2000 3000 2900 3300 2000 4400 5800 2750 1500 4500
4000 2500 3000 3400 3300 2500 4900 5800 2750 1500 4500
5000 2500 3600 3400 3900 2500 4900 6400 2750 1500 4500
  • Note : Pit & overhead dimension subject change depending on travel height and speed.
    (All dimensions are in mm)
