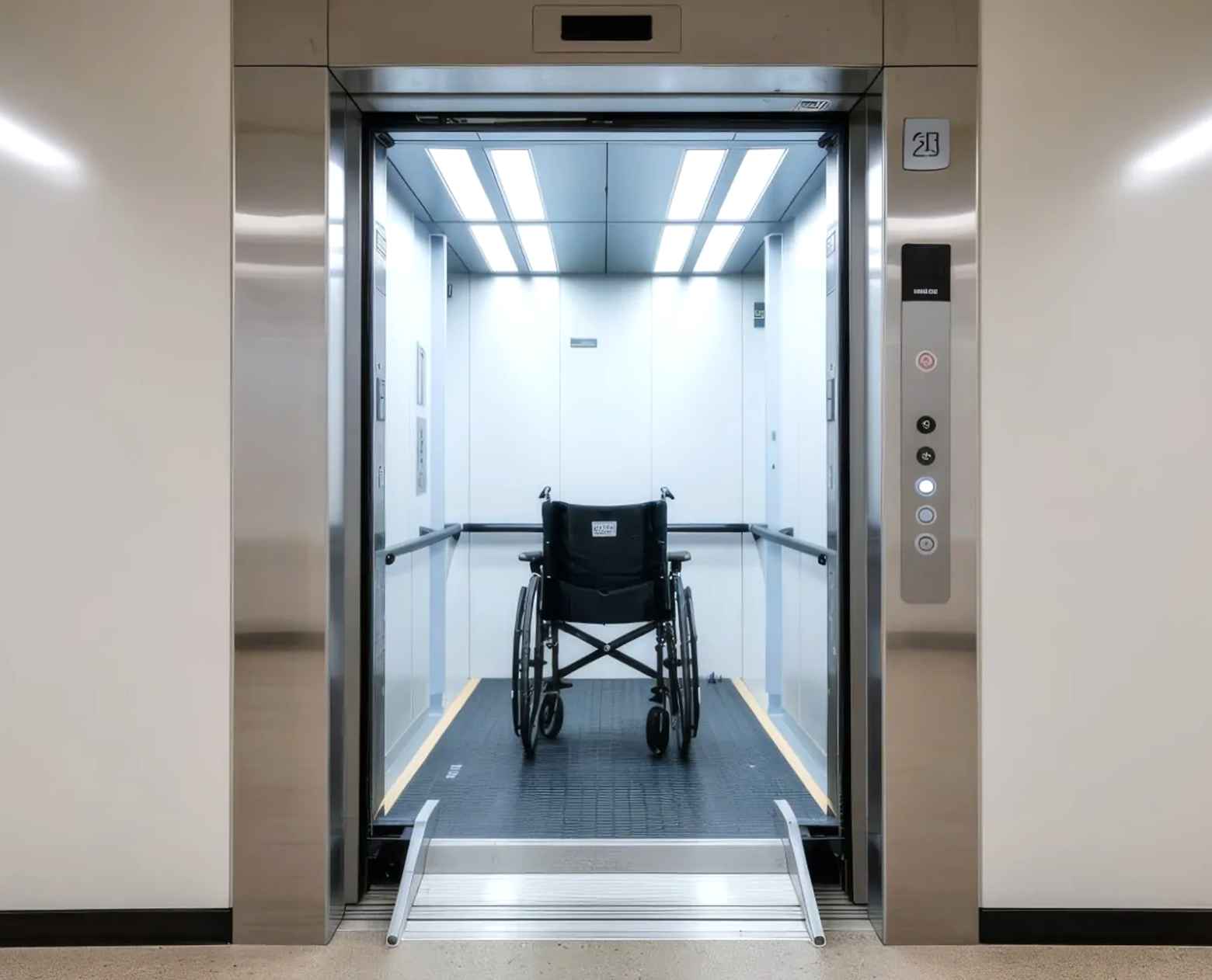

Hospital Elevator

North Eye Elevator is Pioneers in the field of Hydraulic Elevators, These Stote-of-the-Art Elevators have excellent riding, quality, precision floor levelling, extremely silent operation and unsurpassed reliability besides being compact, safe and energy efficient, as they do not need a heavy machine room at the top of the building. A major advantage of these Elevators is that in the event of power failure, Elevator Car automatically comes to a safe landing level.

North Eye Hydraulic Elevators offers installation at site where there is no provision of a shaft for an Elevator and can be erected very fast. North Eye Hydraulic Elevators ore cost— effective due to loss consumption of powercompared to Traction & MRL Elevators. Also these are customised for specific needs of the customer.



Standard Features

  • Overspeed protection
  • Full collective control
  • VVVF drive
  • Emergency light
  • Self diagnosis of breakdown
  • Automatic leveling with ground floor on power restoration
  • Floor position and direction indicator in car and landing
  • Terminal approach slow down for safety
  • Final limit protection
  • Attendant operation for non-stop destination landing
  • Direction change function in attendant mode
  • Emergency alarm
  • Full curtain infrared door safety (for automatic elevator)
  • Home landing

Optional Features

  • Voice announcement in multiple language options
  • Duplex control/Triplex control
  • LCD display with message inside cabin and / or at landings
  • Traffic regulation (for elevator group) — Reduced waiting time at landings
  • Group supervision function
  • Detection of stuck hall button to skip landing
  • Advance detection of floor before landing
  • Advance detection of floor before landing
  • Fireman switch
  • VIP service
  • Closed loop system to monitor motor performance

Standard Dimensions for Stretcher Elevators

Load Capacity Car Size Shaft Size Opening M/c Room Pit Overhead
Person Weight (Kg) Width Depth Width Depth Width Depth Height Depth Depth Height
15 1020 1000 2400 1900 3000 800 3300 5500 2750 1500 4500
20 1360 1300 2400 2200 3000 1200 3700 5500 2750 1500 4500
26 1708 1600 2400 2400 3000 1200 3900 5500 2750 1500 4500
  • Note : Pit & overhead dimension subject change depending on travel height and speed.
    (All dimensions are in mm)
